WRT54GL router is not capable of controlling mechanical parts as is. So we need to add a communication port to it. This post describes how to do that. The complete outline of the routerbot project can be found in this post.

We will expose one TTL serial interface that is hidden somewhere in the router + we’ll see an option of adding a regular RS-232 serial interface for debugging purposes.

First of all let’s void your router’s warranty by taking it apart. This post explains how to do that.

On the video you saw a 10-pin(well, actually 10-hole) connector that provides two serial interfaces. Grab the 3-wire data cable marked as 1k in the list of parts and cut it into two equal 3-pin headers. Solder one of those to the 10-hole connector in the following order:

• PIN3 - to red wire, this is serial interface 1 Tx line
• PIN5 - to white wire, this is serial interface 1 Rx
• PIN9 - to black wire, this is ground

Optionally you can also expose and mark four more wires that can be used as a COM0 connection that is pretty useful for debugging purposes. You will be able to see entire boot process and connect to the router even if all its network interfaces are down.

• PIN2 - +3.3V
• PIN4 - Tx
• PIN6 - Rx
• PIN10 - Ground

I’ll explan in a separate post how to use those 4 wires.

Well done! Now you can take a look at your SSC-32 servo controller and find 5 pins related to serial port. In the manual that comes with the controller they are marked as 13. Take out two jumpers that connect 4 of those pins (save them for the future) and plug out 3-wire cable to the 3 pins in the row. Make sure that black wire goes to the ground, Tx goes to Rx and Rx goes to Tx.

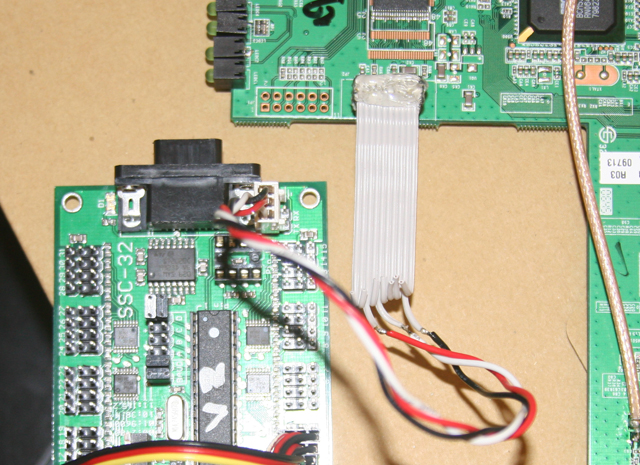

On this image I soldered 10-pin header and used part of IDE cable to connect to it. You can just solder the necessary wires:

It is not shown on the picture, but you should insulate every wire where it is possible that it will tangle with another wire and cause short circuit.

Now, when you got familiar with those 3 wires unplug SSC-32 controller, put it aside and let’s proceed to the next step before we start testing the system and assembling the router.
